Name that Ware, August 2018

The Ware for August 2018 is shown below.

Thanks to Patricio Worthalter for contributing this ware!

Winner, Name that Ware July 2018

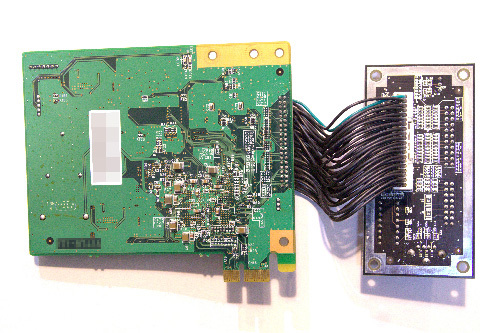

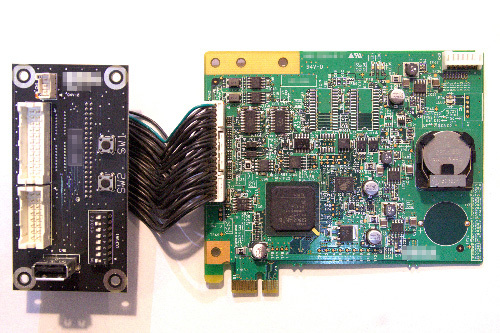

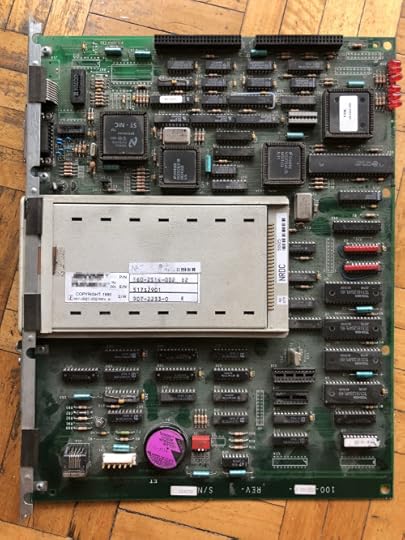

The Ware for July 2018 is an I/O board for the x86-based Sega Nu arcade platform. Congrats to megabytephreak for nailing the ware, email me for your prize! Also props to Vegard for pointing out the JVS connector (the thing that looks like USB but isn’t).

I was curious how certain readers were able to identify this as an arcade-related ware, and the answer I received is that the I/O breakout board is the key — the DIP switches and push-buttons are typical of how arcade machines are configured and serviced, and the JVS connector, if you can recognize it, is a dead give-away. The coin cell for retaining configs & high scores even if the power is pulled is also a potential tell. You learn something new every day!

Tariffs in a Nutshell

I was asked to distill a previous post about tariffs into something more accessible to the general public. The resulting article ended up being run on CNN Digital as an opinion piece:

In retaliation for unfair trade practices and the theft of American innovations and ideas, the US Trade Representative’s office is imposing a 25% tariff on a broad range of goods imported from China.

But these tariffs won’t help American workers. Instead, they will encourage American companies to push ideas and production overseas by raising the cost of raw materials without penalizing the import of finished goods.

[…]

Imagine a bakery located in the US. It uses imported flour, sugar and cacao to make delectable cakes based on a closely-guarded secret family recipe handed down for generations, and it employs dozens of bakers to do this. Now suppose a bakery in China has tried to copy the recipe…

The article uses a bakery as an analogy to explain the trade war situation, as well as thinking through why trade deficits are OK through the notion that buying a T-shirt at a store creates a “trade deficit” between you and the store, but in the end that trade deficit is actually quite helpful to you. You can read the full article on CNN Digital.

I had also prepared a short infographic to accompany the article, which wasn’t picked up by CNN, but you can enjoy it here.

https://bunniefoo.com/bunnie/tariffs_explained.mp4

Name that Ware July 2018

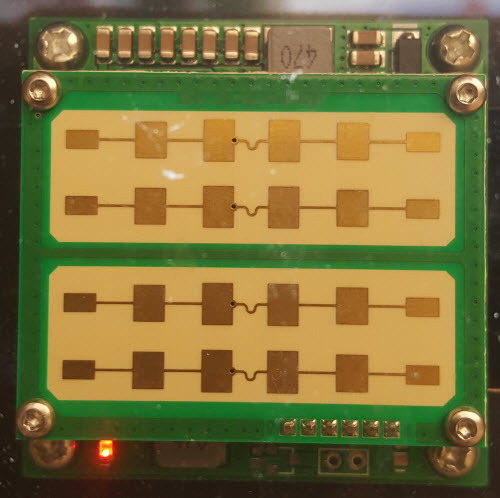

The Ware for July 2018 is shown below.

Thanks to the little birdie that dropped this ware in my inbox. :) Really nice photography work.

Winner, Name that Ware June 2018

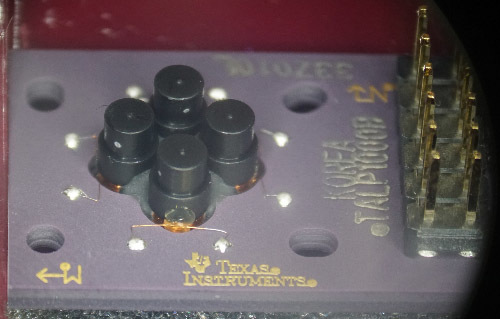

The ware for June 2018 is a TI TALP1000B. Marcan nailed it, congrats! email me for your prize.

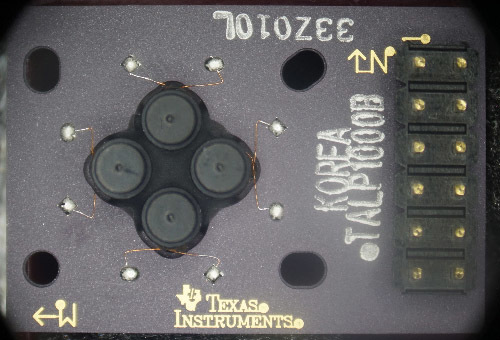

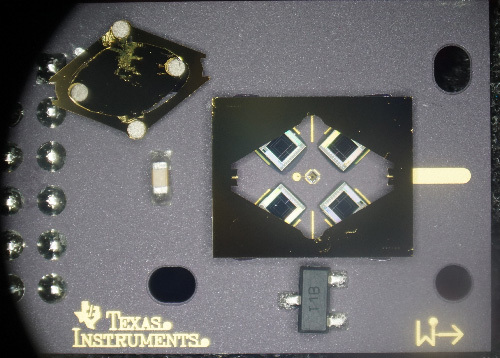

Here’s some more photos of the ware, in case you want more context:

It’s like a science project that became a product.

New US Tariffs are Anti-Maker and Will Encourage Offshoring

The new 25% tariffs announced by the USTR, set to go into effect on July 6th, are decidedly anti-Maker and ironically pro-offshoring. I’ve examined the tariff lists (List 1 and List 2), and it taxes the import of basic components, tools and sub-assemblies, while giving fully assembled goods a free pass. The USTR’s press release is careful to mention that the tariffs “do not include goods commonly purchased by American consumers such as cellular telephones or televisions.”

Think about it – big companies with the resources to organize thousands of overseas workers making TVs and cell phones will have their outsourced supply chains protected, but small companies that still assemble valuable goods from basic parts inside the US are about to see significant cost increases. Worse yet educators, already forced to work with a shoe-string budget, are going to return from their summer recess to find that basic parts, tools and components for use in the classroom are now significantly more expensive.

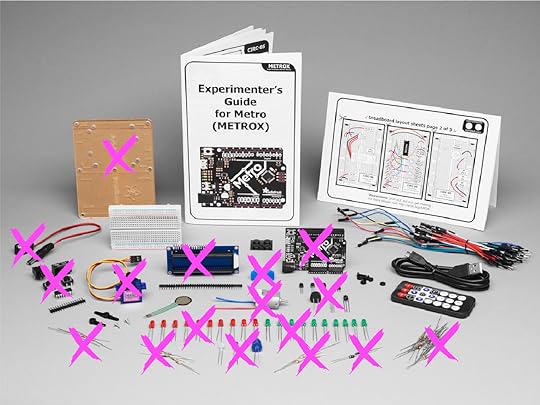

Above: The Adafruit MetroX Classic Kit is representative of a typical electronics education kit. Items marked with an “X” in the above image are potentially impacted by the new USTR tariffs.

New Tariffs Reward Offshoring, Encourage IP Flight

Some of the most compelling jobs to bring back to the US are the so-called “last screw” system integration operations. These often involve the complex and precise process of integrating simple sub-assemblies into high-value goods such as 3D printers or cell phones. Quality control and IP protection are paramount. I often advise startups to consider putting their system integration operations in the US because difficult-to-protect intellectual property, such as firmware, never has to be exported if the firmware upload operation happens in the US. The ability to leverage China for low-value subassemblies opens more headroom to create high-value jobs in the US, improving the overall competitiveness of American companies.

Unfortunately, the structure of the new tariffs are exactly the opposite of what you would expect to bring those jobs back to the US. Stiff new taxes on simple components, sub-assemblies, and tools like soldering irons contrasted against a lack of taxation on finished goods pushes business owners to send these “last screw” operation overseas. Basically, with these new tariffs the more value-add sent outside the borders of the US, the more profitable a business will be. Not even concerns over IP security could overcome a 25% increase in base costs and keep operations in the US.

It seems the intention of the new tariff structure was to minimize the immediate pain that voters would feel in the upcoming mid-terms by waiving taxes on finished goods. Unfortunately, the reality is it gives small businesses that were once considering setting up shop in the US a solid reason to look off-shore, while rewarding large corporations for heavy investments in overseas operations.

New Tariffs Hurt Educators and Makers

Learning how to blink a light is the de-facto introduction to electronics. This project is often done with the help of a circuit board, such as a Microbit or Chibi Chip, and a type of light known as an LED. Unfortunately, both of those items – simple circuit boards and LEDs – are about to get 25% more expensive with the new tariffs, along with other Maker and educator staples such as capacitors, resistors, soldering irons, and oscilloscopes. The impact of this cost hike will be felt throughout the industry, but most sharply by educators, especially those serving under-funded school districts.

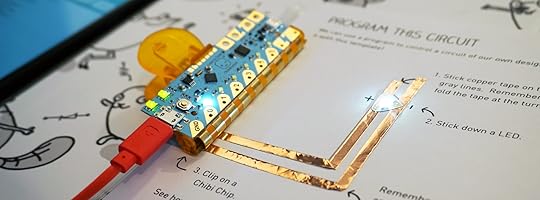

Above: Learning to blink a light is the de-facto introduction to electronics, and it typically involves a circuit board and an LED, like those pictured above.

Somewhere on the Pacific Ocean right now floats a container of goods for ed-tech startup Chibitronics. The goods are slated primarily for educators and Makers that are stocking up for the fall semester. It will arrive in the US the second week of July, and will likely be greeted by a heavy import tax. I know this because I’m directly involved in the startup’s operations. Chibitronics’ core mission is to serve the educator market, and as part of that we routinely offered deep discounts on bulk products for educators and school systems. Now, thanks to the new tariffs on the basic components that educators rely upon to teach electronics, we are less able to fulfill our mission.

Heads up! Prices for our products may have to rise in a couple weeks once 25% import tariffs are implemented (US only). If you've been on the fence, now is a good time to buy.

— chibitronics (@chibitronics) June 18, 2018

A 25% jump in base costs forces us to choose between immediate price increases or cutting the salaries of our American employees who support the educators. These new tariffs are a tax on America’s future – it deprives some of the most vulnerable groups of access to technology education, making future American workers less competitive on the global stage.

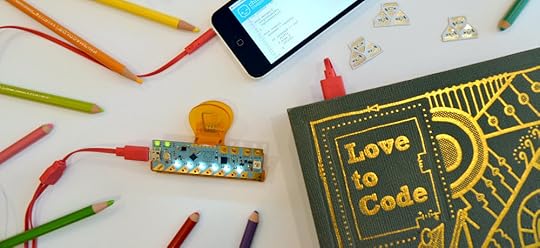

Above: Educator-oriented learning kits like the Chibitronics “Love to Code” are slated for price increases this fall due to the new tariffs.

Protectionism is Bad for Technological Leadership

Recently, I was sent photos by Hernandi Krammes of a network card that was manufactured in Brazil around 1992. One of the most striking features of the card was how retro it looked – straight out of the 80’s, a full decade behind its time. This is a result of Brazil’s policy of protectionist tariffs on the import of high-tech components. While stiff tariffs on the import of microchips drove investment in local chip companies, trade barriers meant the local companies didn’t have to be as competitive. With less incentive to re-invest or upgrade, local technology fell behind the curve, leading ultimately to anachronisms like the Brazilian Ethernet card pictured below.

Above: this Brazilian network card from 1992 features design techniques from the early 80’s. It is large and clunky compared to contemporaneous cards.

Significantly, it’s not that the Brazilian engineers were any less clever than their Western counterparts: they displayed considerable ingenuity getting a network card to work at all using primarily domestically-produced components. The tragedy is instead of using their brainpower to create industry-leading technology, most of their effort went into playing catch-up with the rest of the world. By the time protectionist policies were repealed in Brazil, the local industry was too far behind to effectively compete on a global scale.

Should the US follow Brazil’s protectionist stance on trade, it’s conceivable that some day I might be remarking on the quaintness of American network cards compared to their more advanced Chinese or European counterparts. Trade barriers don’t make a country more competitive – in fact, quite the opposite. In a competition of ideas, you want to start with the best tech available anywhere; otherwise, you’re still jogging to the starting line while the competition has already finished their first lap.

Stand Up and Be Heard

There is a sliver of good news in all of this for American Makers. The list of commodities targeted in the trade war is not yet complete. The “List 2” items – which include all manner of microchips, motors, and plastics (such as 3D printer PLA filament and acrylic sheets for laser cutting) that are building blocks for small businesses and Makers – have yet to be ratified. The USTR website has indicated in the coming weeks they will disclose a process for public review and comment. Once this process is made transparent – whether you are a small business owner or the parent of a child with technical aspirations – I encourage you to please share your stories and concerns on how you will be negatively impacted by these additional tariffs.

Some of the List 2 items still under review include:

9030.31.00
Multimeters for measuring or checking electrical voltage, current, resistance or power, without a recording device


8541.10.00
Diodes, other than photosensitive or light-emitting diodes


8541.40.60
Diodes for semiconductor devices, other than light-emitting diodes, nesoi


8542.31.00
Electronic integrated circuits: processors and controllers


8542.32.00
Electronic integrated circuits: memories


8542.33.00
Electronic integrated circuits: amplifiers


8542.39.00
Electronic integrated circuits: other


8542.90.00
Parts of electronic integrated circuits and microassemblies


8501.10.20
Electric motors of an output of under 18.65 W, synchronous, valued not over $4 each


8501.10.60
Electric motors of an output of 18.65 W or more but not exceeding 37.5 W


8501.31.40
DC motors, nesoi, of an output exceeding 74.6 W but not exceeding 735 W


8544.49.10
Insulated electric conductors of a kind used for telecommunications, for a voltage not exceeding 80 V, not fitted with connectors


8544.49.20
Insulated electric conductors nesoi, for a voltage not exceeding 80 V, not fitted with connectors


3920.59.80
Plates, sheets, film, etc, noncellular, not reinforced, laminated, combined, of other acrylic polymers, nesoi


3916.90.30
Monafilament nesoi, of plastics, excluding ethylene, vinyl chloride and acrylic polymers

Here’s some of the “List 1” items that are set to become 25% more expensive to import from China, come July 6th:

Staples used by every Maker or electronics educator:

8515.11.00
Electric soldering irons and guns


8506.50.00
Lithium primary cells and primary batteries


8506.60.00
Air-zinc primary cells and primary batteries


9030.20.05
Oscilloscopes and oscillographs, specially designed for telecommunications


9030.33.34
Resistance measuring instruments


9030.33.38
Other instruments and apparatus, nesoi, for measuring or checking electrical voltage, current, resistance or power, without a recording device


9030.39.01
Instruments and apparatus, nesoi, for measuring or checking

Circuit assemblies (like Microbit, Chibi Chip, Arduino):

8543.90.68
Printed circuit assemblies of electrical machines and apparatus, having individual functions, nesoi


9030.90.68
Printed circuit assemblies, NESOI

Basic electronic components:

8532.21.00
Tantalum fixed capacitors


8532.22.00
Aluminum electrolytic fixed capacitors


8532.23.00
Ceramic dielectric fixed capacitors, single layer


8532.24.00
Ceramic dielectric fixed capacitors, multilayer


8532.25.00
Dielectric fixed capacitors of paper or plastics


8532.29.00
Fixed electrical capacitors, nesoi


8532.30.00
Variable or adjustable (pre-set) electrical capacitors


8532.90.00
Parts of electrical capacitors, fixed, variable or adjustable (pre-set)


8533.10.00
Electrical fixed carbon resistors, composition or film types


8533.21.00
Electrical fixed resistors, other than composition or film type carbon resistors, for a power handling capacity not exceeding 20 W


8533.29.00
Electrical fixed resistors, other than composition or film type carbon resistors, for a power handling capacity exceeding 20 W


8533.31.00
Electrical wirewound variable resistors, including rheostats and potentiometers, for a power handling capacity not exceeding 20 W


8533.40.40
Metal oxide resistors


8533.40.80
Electrical variable resistors, other than wirewound, including rheostats and potentiometers


8533.90.80
Other parts of electrical resistors, including rheostats and potentiometers, nesoi


8541.21.00
Transistors, other than photosensitive transistors, with a dissipation rating of less than 1 W


8541.29.00
Transistors, other than photosensitive transistors, with a dissipation rating of 1 W or more


8541.30.00
Thyristors, diacs and triacs, other than photosensitive devices


8541.40.20
Light-emitting diodes (LED’s)


8541.40.70
Photosensitive transistors


8541.40.80
Photosensitive semiconductor devices nesoi, optical coupled isolators


8541.40.95
Photosensitive semiconductor devices nesoi, other


8541.50.00
Semiconductor devices other than photosensitive semiconductor devices, nesoi


8541.60.00
Mounted piezoelectric crystals


8541.90.00
Parts of diodes, transistors, similar semiconductor devices, photosensitive semiconductor devices, LED’s and mounted piezoelectric crystals


8504.90.75
Printed circuit assemblies of electrical transformers, static converters and inductors, nesoi


8504.90.96
Parts (other than printed circuit assemblies) of electrical transformers, static converters and inductors


8536.50.90
Switches nesoi, for switching or making connections to or in electrical circuits, for a voltage not exceeding 1,000 V


8536.69.40
Connectors: coaxial, cylindrical multicontact, rack and panel, printed circuit, ribbon or flat cable, for a voltage not exceeding 1,000 V


8544.49.30
Insulated electric conductors nesoi, of copper, for a voltage not exceeding 1,000 V, not fitted with connectors


8544.49.90
Insulated electric conductors nesoi, not of copper, for a voltage not exceeding 1,000 V, not fitted with connectors


8544.60.20
Insulated electric conductors nesoi, for a voltage exceeding 1,000 V, fitted with connectors


8544.60.40
Insulated electric conductors nesoi, of copper, for a voltage exceeding 1,000 V, not fitted with connectors

Parts to fix your phone if it breaks:

8537.10.80
Touch screens without display capabilities for incorporation in apparatus having a display


9033.00.30
Touch screens without display capabilities for incorporation in apparatus having a display


9013.80.70
Liquid crystal and other optical flat panel displays other than for articles of heading 8528, nesoi


9033.00.20
LEDs for backlighting of LCDs


8504.90.65
Printed circuit assemblies of the goods of subheading 8504.40 or 8504.50 for telecommunication apparatus

Power supplies:

9032.89.60
Automatic regulating or controlling instruments and apparatus, nesoi


9032.90.21
Parts and accessories of automatic voltage and voltage-current regulators designed for use in a 6, 12, or 24 V system, nesoi


9032.90.41
Parts and accessories of automatic voltage and voltage-current regulators, not designed for use in a 6, 12, or 24 V system, nesoi


9032.90.61
Parts and accessories for automatic regulating or controlling instruments and apparatus, nesoi


8504.90.41
Parts of power supplies (other than printed circuit assemblies) for automatic data processing machines or units thereof of heading 8471

Developing Apps for Your TV the Easy and Open Way

The biggest screen in your house would seem a logical place to integrate cloud apps, but TVs are walled gardens. While it’s easy enough to hook up a laptop or PC and pop open a browser, there’s no simple, open framework for integrating all that wonderful data over

the TV’s other inputs.

Until now. Out of the box, NeTV2’s “NeTV Classic Mode” makes short work of overlaying graphics on top of any video feed. And thanks to the Raspberry Pi bundled in the Quickstart version, NeTV2 app developers get to choose from a diverse and well-supported ecosystem of app frameworks to install over the base Raspbian image shipped with every device.

For example, Alasdair Allan’s article on using the Raspberry Pi with Magic Mirror and Google AIY contains everything you need to get started on turning your TV into a voice-activated personal assistant. I gave it a whirl, and in just one evening I was able to concoct the demo featured in the video below.

Magic Mirror is a great match for NeTV2, because all the widgets are formatted to run on a black background. Once loaded, I just had to set the NeTV2’s chroma key color to black and the compositing works perfectly. Also, Google AIY’s Voicekit framework “just worked” out of the box. The only fussy bit was configuring it to work with my USB microphone, but thankfully there’s a nice Hackaday article detailing exactly how to do that.

Personally, I find listening to long-form replies from digital assistants like Alexa or Google Home a bit time consuming. As you can see from this demo, NeTV2 lets you build a digital assistant that pops up data and notifications over the biggest screen in your house using rich visual formats. And the best part is, when you want privacy, you can just unplug the microphone.

If you can develop an app that runs on a Raspberry Pi, you already know everything you need to integrate apps into any TV. Thanks to NeTV2, there’s never been an easier or more open way to make the biggest screen in your house the smartest screen.

The NeTV2 is crowdfunding now at CrowdSupply.com, and we’re just shy of our first stretch goal: a free Tomu bundled with every board. Normally priced at $30, Tomu is a tiny open-source computer that fits in a USB Type-A port, and it’s the easiest way to add an extra pair of status LEDs to an NeTV2. Help unlock this deal by backing now and spreading the word!

Name that Ware, June 2018

The Ware for June 2018 is shown below.

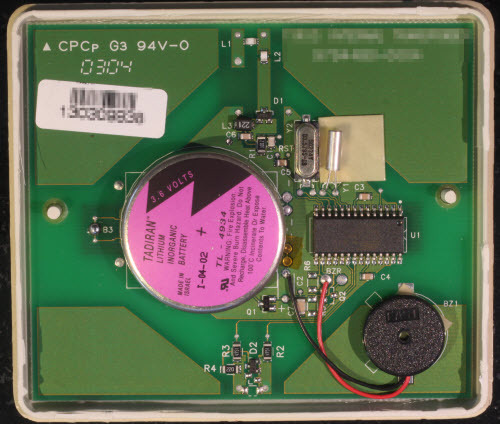

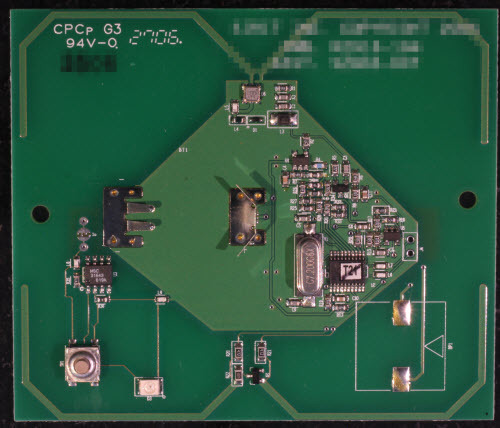

This month we’ll start with the very zoomed in and slightly torn down view of the ware, and if nobody’s nailed it I’ll release some more contextual images throughout the month.

Special thanks to Nava for giving me this ware!

Winner, Name that Ware May 2018

The NeTV2-MVP DVT1E rev shown in the May 2018 ware has 933 vias and 63 holes for a total of 996 drill hits. The closest guess for total number of drill hits was Jonathan, at 69 holes and 888 vias = 957 drill hits (39 shy of the total). Mangel was in a close second place with 84 hols and 962 vias for a total of 1046 drill hits (50 over the total). So, Jonathan’s the winner! Congrats, please email me to claim your board!

Innovation Should Be Legal. That’s Why I’m Launching NeTV2.

I’d like to share a project I’m working on that could have an impact on your future freedoms in the digital age. It’s an open video development board I call NeTV2.

The Motivation

It’s related to a lawsuit I’ve filed with the help of the EFF against the US government to reform Section 1201 of the DMCA. Currently, Section 1201 imbues media cartels with nearly unchecked power to prevent us from innovating and expressing ourselves, thus restricting our right to free speech.

Have you ever noticed how smart TVs seem pretty dumb compared to our phones? It’s because Section 1201 enables a small cartel of stakeholders to pick and choose who gets to process video. So, for example, anyone is allowed to write a translation app for their smartphone that does real-time video translation of text. However, it’s potentially unlawful to build a box, even in the privacy of my own home, that implements the same thing over the HDCP-encrypted video feeds that go from my set top box to my TV screen.

This is due to a quirk of the DMCA that makes it unlawful for most citizens to bypass encryption – even for lawful free-speech activities, such as self-expression and innovation. Significantly, since the founding of the United States, it’s been unlawful to make copies of copyrighted work, and I believe the already stiff penalties for violating copyright law offer sufficient protection from piracy and theft.

However, in 1998 a group of lobbyists managed to convince Congress that the digital millennium presented an existential threat to copyright holders, and thus stiffer penalties were needed for the mere act of bypassing encryption, no matter the reason. These penalties are in addition to the existing penalties written into copyright law. By passing this law, Congress effectively turned bypassing encryption into a form of pre-crime, empowering copyright holders to be the sole judge, jury and executioner of what your intentions might have been. Thus, even if you were to bypass encryption solely for lawful purposes, such as processing video to translate text, the copyright holder nonetheless has the power to prosecute you for the “pre-crimes” that could follow from bypassing their encryption scheme. In this way, Section 1201 of the DMCA effectively gives corporations the power to license when and how you express yourself where encryption is involved.

I believe unchecked power to license freedom of expression should not be trusted to corporate interests. Encryption is important for privacy and security, and is winding its way into every corner of our life. It’s fundamentally a good thing, but we need to make sure that corporations can’t abuse Section 1201 to also control every corner of our life. In our digital age, the very canvas upon which we paint our thoughts can be access-controlled with cryptography, and we need the absolute right to paint our thoughts freely and share them broadly if we are to continue to live in a free and just society. Significantly, this does not diminish the power of copyrights one bit – this lawsuit simply aims to limit the expansive “pre-crime” powers granted to license holders, that is all.

Of course, even though the lawsuit is in progress, corporations still have the right to go after developers like you and me for the notional pre-crimes associated with bypassing encryption. However, one significant objection lodged by opponents of our lawsuit is that “no other users have specified how they are adversely affected by HDCP in their ability to make specific noninfringing use of protected content … [bunnie] has failed to demonstrate … how “users ‘are, or are likely to be,’ adversely affected by the prohibition on circumventing HDCP.” This is, of course, a Catch-22, because how can you build a user base to demonstrate the need for freedoms when the mere act of trying to build that user base could be a crime in itself? No investor would touch a product that could be potentially unlawful.

Thankfully, it’s 2018 and we have crowd funding, so I’m launching a crowd funding campaign for the NeTV2, in the hopes of rallying like-minded developers, dreamers, users, and enthusiasts to help build the case that a small but important group of people can and would do more, if only we had the right to do so. As limited by the prevailing law, the NeTV2 can only process unencrypted video and perform encryption-only operations like video overlays through a trick I call “NeTV mode”. However, it’s my hope this is a sufficient platform to stir the imagination of developers and users, so that together we can paint a vibrant picture of what a future looks like should we have the right to express our ideas using otherwise controlled paints on otherwise denied canvases.

Some of the things you might be able to do with the NeTV2, if you only had the right to do it…

The Hardware

The heart of the NeTV2 is an FPGA-based video development board in a PCIe 2.0 x4 card form factor. The board supports up to two video inputs and two video outputs at 1080p60, coupled to a Xilinx XC7A35T FPGA, along with 512 MiB of DDR3 memory humming along at a peak bandwidth of 25.6 Gbps. It also features some nice touches for debugging including a JTAG/UART header made to plug directly into a Raspberry Pi, and a 10/100 Ethernet port wired directly to the FPGA for Etherbone support. For intrepid hackers, the reserved/JTAG pins on the PCI-express header are all wired to the FPGA, and microSD and USB headers are provisioned but not specifically supported in any mode. And of course, the entire PCB design is open source under the CERN OHL license.

The NeTV2 board as mounted on a Raspberry Pi

The design targets two major use scenarios which I refer to as “NeTV classic” mode (video overlays with encryption) and “Libre” mode (deep video processing, but limited to unencrypted feeds due to Section 1201).

In NeTV classic mode, the board is paired with a Raspberry Pi, which serves as the source for chroma key overlay video, typically rendered by a browser running in full-screen mode. The Raspberry Pi’s unencrypted HDMI video output is fed into the NeTV2 and sampled into a frame buffer, which is “genlocked” (e.g. timing synchronized) to a video feed that’s just passing through the FPGA via another pair of HDMI input/outputs. The NeTV2 has special circuits to help observe and synchronize with cryptographic state, should one exist on the pass-through video link. This allows the NeTV2 to encrypt the Raspberry Pi’s overlay feed so that the Pi’s pixels can be used for a simple “hard overlay” effect. NeTV classic mode thus enables applications such as subtitles and pop-up notifications by throwing away regions of source video and replacing it entirely with overlay pixels. However, a lack of access to unencrypted pixels disallows even basic video effects such as alpha blending or frame scaling.

In Libre mode, the board is meant to be plugged into a desktop PC via PCI-express. Libre mode only works with unencrypted video feeds, as the concept here is full video frames are sampled and buffered up inside NeTV2 so that it can be forwarded on to the host PC for further processing. Here, the full power of a GPU or x86 CPU can be applied to extract features and enhance the video, or perhaps portions of the video could even be sent to to the cloud for processing. Once the video has been processed, it is pushed back into the NeTV2 and sent on to the TV for viewing. Libre mode is perhaps the most interesting mode to developers, yet is very limited in every day applications thanks to Section 1201 of the DMCA. Still, it may be possible to craft demos using properly licensed, unencrypted video feeds.

The reference “gateware” (FPGA design) for the NeTV2 is written in Python using migen/LiteX. I previously compared the performance of LiteX to Vivado: for an NeTV2-like reference design, the migen/LiteX version consumes about a quarter the area and compiles in less than a quarter the time – a compelling advantage. migen/LiteX is a true open source framework for describing hardware, which relies on Xilinx’s free-to-download Vivado toolchain for synthesis, place/route, and bitstream generation. There is a significant effort on-going today to port the full open source FPGA backend tools developed by Clifford Wolf from the Lattice ICE40 FPGAs to the same Xilinx 7-series FPGAs used in NeTV2. Of course, designers that prefer to use the Vivado tools to describe and compile their hardware are still free to do so, but I am not officially supporting that design methodology.

I wanted to narrow the gap between development board and field deployable solution, so I’ve also designed a hackable case for the NeTV2. The case can hold the NeTV2 and a mated Raspberry Pi, and consists of three major parts, a top shell, bottom shell/back bezel, and a stand-alone front bezel. It also has light pipes to route key status LEDs to the plane of the back bezel. It’s designed to be easily disassembled using common screw drivers, and features holes for easy wall-mounting.

Most importantly, the case features extra space with a Peek Array on the inside for mounting your own PCBs or parts, and the front bezel is designed for easier fabrication using either subtractive or additive methodologies. So, if you have a laser cutter, you can custom cut a bezel using a simple, thin sheet of acrylic and slot it into the grooves circumscribing the end of the case. Or, if you have a low-res 3D printer, you can use the screw bosses to attach the bezel instead, and skip the grooves. When you’re ready to step up in volume, you can download the source file for the bezel and make a relatively simple injection mold tool for just the bezel itself (or the whole case, if you really want to!).

The flexibility of the PCI-express edge connector and the simplified bezel allows developers to extend the NeTV2 into a system well beyond the original design intention. Remember, for an FPGA, PCI-express is just a low-cost physical form factor for generic high speed I/O. So, a relatively simple to design and cheap to fabricate adapter card can turn the PCI-express card-edge connector into a variety of high-speed physical standards, including SATA, DisplayPort, USB3.0 and more. There’s also extra low-speed I/O in the header, so you can attach a variety of SPI or I2C peripherals through the same connector. This electrical flexibility, combined with PCBs mounted on the Peek Array and a custom bezel enables developers to build a customer-ready solutions with minimal effort and tooling investment.

The NeTV2 is funding now at Crowd Supply. I’m offering a version with a higher-capacity FPGA only for the duration of the campaign, so if you’re developer be sure to check that out before the campaign ends. If you think that reforming the DMCA is important but the NeTV2 isn’t your cup of tea, please consider supporting the EFF directly with a donation. Together we can reform Section 1201 of the DMCA, and win back fundamental freedoms to express and innovate in the digital age.
