Is it already Thurdsay again?

These weeks are just flying past lately! And once again it's Thursday, which means I'm posting over at Write On The Water. Today: In Doldrums

Getting our bearings at last!!!

They're here! So shiny, so pretty! Our bright new Johnson Duramax cutless and rudder bearings!

And they said it couldn't be done! Thank you, Shad at Lauderdale Propeller!

Below: We had two of the cutless bearings machined to our specs, and ordered a third as a spare. Note the difference between original sleeve thickness and the machined thickness.

Yet more bearings…

Dodge on jacks? It must be Saturday.

Driveshaft bearings of one sort or another have been an ongoing theme this summer, and in each case what seemed simple and straightforward has been anything but.  First came the boat, and I'm happy to report the special-order bearings from Fort Lauderdale Propeller have been machined to our specs and are currently in transit. But in the meantime a quick inspection of the Dodge revealed that after 19 years, the main driveshaft bearing was due for replacement. And since the truck is essential for hauling tools and parts back and forth to the boat, we really can't work on the boat unless we work on the truck first. But this one should be quick and easy… or so we thought.

In truth, we have no one to blame but ourselves. When we bought this truck back in 1992, we ordered it with a few non-standard features. Rather than the V8, which only came with an automatic, we went with the V6 and 5 speed manual. Four-wheel drive seemed an unnecessary expense, but we opted for the posi-traction rear. We added the heavy duty tow package, which beefed up various parts to handle the additional load. Anti-lock brakes were just coming on the market, and we went with that as well, along with cruise control and a few (very few) amenities.  Little did we know we had created a monster.  All these years later, whenever we need to replace some standard part, nothing matches what a 2 wheel drive V6 Dakota of this vintage should contain. Our little Dodge is a hodge-podge of parts intended for the V8, the 4 wheel drive, and in some cases, a full-size Ram.

Below: Exhibit A. Note the original driveshaft bearing, (Bottom) slightly toasted and mis-shaped after utilizing a torch and chisel to separate it from driveshaft. Notice that the 'identical to original' replacement in the box bears no resemblance to what we removed. Further investigation revealed the old bearing matches those used on the much larger Ram.

Exhibit B.  The driveshaft universal joints were getting stiff, so we figured we'd swap them out while the driveshaft was out. What isn't immediately apparent in this photo is that while they should all be the same size, they aren't.

Original universal joints – not what the parts books claim. By now we should be used to this.

Coming together at last, though not without the usual modifications. Of course, a job we thought would be wrapped up by lunch dragged into Sunday, at which point it was pouring on a biblical scale that had roads closed and rail lines shut down due to flooding. And where are we? On our backs under the truck, reinstalling the driveshaft. But the truck is once again back together, which means we can now turn our attention back to the boat. And now that the engine room is wide open, we can pull the transmission, strip down and clean the engine, replace the motor mounts, belts, hoses, thermostat, fuel lines, oil lines, oil cooler, trans fluid cooler, heat exchanger,  solenoids, zincs,  drive damper plate, relocate the fuel-water separator, replace the cutlass and rudder bearings, rebuild the steering yet again, and by time we're done with all that it should be cool enough to start rebuilding /fiberglassing  the salon ceiling/ bridge deck.

This, kind readers, is the fun of life with an old truck and an even older boat. And it is why 'weekend' and 'relax' are not synonymous in my vocabulary.

In case anyone was wondering…

It's Thursday, which means I'm over at Write On The Water today.  And just about every Thursday, in case I hadn't mentioned it.  Which explains one portion of what I'm up to for 1/7 th of the week, at least blogging-wise. As for the rest of my time, it is divided between writing insanity (take that however you chose) and the insanity of working on the boat/truck/car/whatever else leaks, squeaks or otherwise demands attention this week.  Oh yeah. And occasionally I sleep.

Now you know.

Weekends…

…are always a busy time for me, especially in the summer.  So busy, in fact, that from Friday through until Monday I'm all but non-existent within the online world. I may peak in on email and such, but it's not until Monday morning that I start to catch up on all comments and correspondence. And I think I'm just about done for the moment.

Fire Away!

In less than a year over 16,000 people have purchased Last Exit In New Jersey. It was slow in the beginning — most of these readers have come along within the last few months. Occasionally, people who love my book are kind enough to take the time to write me personally. I can't begin to tell you how wonderful it is as I sit here alone working away on the next book, to hear just how much someone enjoyed the last one and how they can't wait to read the sequel. Fan letters like those are even better than caffeine for keeping me up and working late into the night! Overall I've been thrilled by how well my quirky tale has been received, though it doesn't surprise me that on occasion a reader has left a less than glowing review on Amazon.

There's no such thing as a book every reader will enjoy. Unfavorable reviews go with the territory and as authors we should expect and accept all feedback, not just the positive. Every review has its validity; it is that reader's honest opinion and among them have been some constructive points. I'll admit good reviews make my day, but fair, critical reviews help me to see what I can work on for the next book. The only reviews that truly bother me are ones that reveal spoilers.

So, for those who have already posted reviews, I would like to say thank you. For everyone who has told a friend how much you enjoyed my story, you have my sincere gratitude. And to those of you who have read my book but haven't posted a review on Amazon, why not let other readers know what you think. Did you find my book absolutely awful, meh, or enjoyable? What did you like or hate, and why? And please, feel free to speak up: what one reader can't stand might be what others prefer. Many readers chose books based upon the opinions of others, and as an author I value hearing your impressions of my writing. So fire away! I'm from Jersey… I can take it!

A tale of two bearings…

Technically, three bearings, and it begins with that original cutlass bearing. Looking back, that should have been the first sign that some unusual headaches would await us down the road. Back when we were buying Annabel Lee, the initial attempt at a sea-trial revealed a severely worn cutlass bearing, and the seller needed to replace that as one of the conditions of the sale. Simple enough? Apparently not, as days stretched into weeks and we were told the mechanic he'd hired to do the work was having difficulty locating a proper sized replacement. In truth, being that it was October and haul-out season was in full swing, we believed the delays were more a case of this job falling on the low end of the mechanic's priorities, and being that it wasn't our boat yet, things were out of our hands. Eventually a bearing turned up, I'm told, when the seller discovered he had a spare he'd completely forgotten about aboard. But the job was completed, the sea-trial and survey wrapped up, (including an inspection of the work by the surveyor, who completely overlooked the fact that the mechanic had installed the rudder tiller upside down, which led to another string of headaches, but that's not today's topic.) We've learned several lessons from that experience, including the realization that if no one could locate a bearing for a boat with a 1.75″ shaft, that might be a cause for consideration.

Move ahead a bit and we find ourselves working out various other mechanical kinks, including a stuffing box with a worn inner cutlass bearing (yes, they do exist) and numerous steering issues, including a rudder with (among other things) a bit too much play from a worn lower bearing. As with everything else on this boat it took some doing, (and thoughts of dynamite for more than one reason,) but ultimately we removed both the stuffing box and the rudder bearing with the innocent and simple intention of replacing both bearings… and that's where things got interesting.

Let's start with the rudder.

Yes, this is the rudder on a 32′ powerboat. But as with everything else on this miniature ship, it is overbuilt. The rudder blade itself measures 20″ wide by 34″ high, and if you take the shaft into consideration that brings the total length to 59″.  There's even a removable deck plate in the cockpit that allows you to insert a manual 'emergency' tiller onto the squared end, should the hydraulics fail. Details like this are among the reasons this boat, despite the work she needs, impressed me to begin with.

Tiller and upper assembly (with soda bottle to catch hydraulic fluid as we replaced the ram with blown seals.)

Rudder tube leading to lower bearing.

Above: Upper assembly removed.

Lower bearing housing coming out.

Above: Lower bearing housing removed.

Above: You might think there would be a set screw or two to keep the bearing from spinning, but there were none to be seen. Still, the bearing didn't wouldn't separate from the housing until we resorted to a hydraulic press.

Ultimately it turned out there was a set-screw concealed under layers of caulking/???, and not only was it hammered into place as not to EVER back out, but the head was also ground down. Two strong men and a whole lot of persuasion later and…

The tube is clear. And here's the first bearing I'm trying to locate. It seems to be made of some hard composite.

And that brings us to the stuffing box.

The orange dust you see here is called 'Phillybond', a flexible stern tube sealant. It turns out that in addition to being bolted into the hull, the stuffing box was also threaded onto the stern tube, and sealed with Phillybond  epoxy as well.

Another view, to show just how deep this is set in.

First round with hydraulics only managed to remove the very much crudded-up collar that (theoretically) directs water around the shaft, but not the cutlass sleeve.

This was going to require a bit more pressure…

[image error]

And victory at last!

[image error]

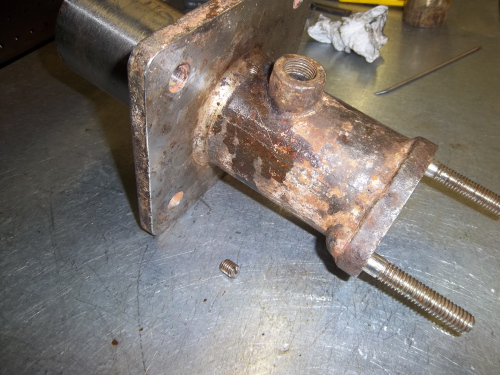

But why was it so hard to remove the sleeve? Perhaps another hidden set screw, also hammered down and ground smooth then covered under years of age?

There it is. And here it is, the reputedly non-existent inner cutlass bearing.

And not surprisingly, this bearing is the same inner and outer dimension as the outer cutlass bearing. The inner diameter of 1.75″ is easy enough. It's that outer dimension that makes things interesting. It's 62 mm or 2.44″, a size we've discovered is harder to locate than you'd first imagine. And that's where we are now, trying to track down two cutlass bearings with outer diameters of 62 mm.

We have a plan B and even a plan C, but ultimately the ideal would be plan A – replace these bearings apples to apples. Surely with all the trawlers and sailing craft coming out of Hong Kong during the seventies and eighties, ours can't be the only boat built with bearings of these dimensions.

Update: presently we may have located a Duramax bearing with an outer diameter of 65 mm and an outer wall thick enough to be machined down to 62 mm. It's a start but I'm still curious if there's anything that starts out at a closer fit.

A well-ventilated engine room…

This *was* the salon sole.

There's a very nice old Ford Lehman diesel beneath this lovely teak parquet. At the bottom of the photo you can see a small access hatch. And while the engine room is, in fact, quite roomy, to work on the engine involves much climbing around on hands and knees. Work would be much easier with greater access. On many other boats there is often a larger engine room hatch, and it seems our boat was built with one as well – only it was covered over when the cabin was fitted out. From below you can see a portion of the actual hatch edge. I've marked the dimensions from above with tape.

And with a bit of persuasion and the removal of much of the pretty teak, we now have what I would term excellent access to all areas of the engine room.

And as for all that teak, it will be returned, refinished and re-installed around an ultimately redesigned hatch so when all is said and done we can access the engine without having to dis-assemble half the cabin.

And this is just one of several reasons I rarely go online, answer emails or do much else online over the weekends.  Next post… BEARINGS!!!

Can't leave well enough alone…

But it'll look so nice when it's done! Really!

However…

There seems to be an issue with pins.

Foglights! (pending completed wiring/module issues)

Celebrating INDIE-pendence!

The 4th of July weekend is rapidly approaching, and once again I'm looking forward to my favorite holiday of the year. After all, what other holiday lets you barbeque and watch colorful explosions? (Alright. Anyone who knows me knows I celebrate Christmas the same way, but still, it's not as warm and there are no fireflies at dusk.) And even though the boat is still ashore, this weekend I'll be enjoying myself more than usual because I have so much to celebrate.  For me, this year's 4th is more like Independence Day, Thanksgiving and Christmas all rolled together!

Back when I was considering this whole 'Independent Publishing' path, it was a bit unnerving, wondering if I had made the right decision. But I can say now that the last few months have far exceeded anything I could have imagined and I'm thrilled by how quickly my writing has risen in popularity, gaining so many new readers. Even with an inexplicably mis-formated description (Amazon assures me they are working on correcting the issue,) for the last week Last Exit In New Jersey ranked among Amazon's Top 100 Bestsellers, pushing me past the 10,000 copies sold milestone. Every review, every letter I receive, and even the fan-art (!!!) makes me even happier, further fueling my enthusiasm as I write No Wake Zone. So once again, thank you all!

And for any readers looking to discover some other great Indie books, be sure to check out the Declare Your Independence Indie Author Giveaway Carnival at What Book Is That! Through the month of July, there will be reviews and give-aways aplenty; the focus is on some amazing indie books and authors (including yours truly) and this is your chance to stock up on your summer reading while supporting us Indies.

Have a fun and safe 4th!
